Mata 1 | TPMS for Cars & Caravans (Monitors 4-10 Tyres)

• Display monitor
• 4/5/6/8/10 sensors (external/internal)
• Matching number of lock nuts (external only)
• Patented wrench (external only)
• Instruction manual

• Pressure monitoring range: 7-99 PSI (0.5-7 BAR)
• Monitoring distance: 10 meters
• Accuracy: ± 1.5 PSI (± 0.1 BAR)
• Maximum number of tyres monitored: Up to 10
• Booster distance: Maximises total distance to 25m
• Battery life: External sensor - 2+ years (replaceable), internal sensor - 5 years

• Automatically recognises when trailer is attached/detached and displays tyre information accordingly - preventing hassle and false alarms
• Adjustable high and low pressure alarm thresholds for each axle
• Vibration sensitive auto-wake display
• Real time tyre pressure and tyre temperature monitoring
• Display scrolls automatically to show car and trailer tyre data
• Alerts for low pressure, high pressure, fast air leakage and high tyre temperature
• IP67 rated sensors are both waterproof and dustproof
• Backlight for night driving
• Replaceable CR1632 button cell battery for the external sensors
• Can add sensors to monitor up to 10 tyres - including 2 spare tyres
• Optionally add booster to strengthen sensor signal distance (recommended for distance > 10m and vehicles installed with dash-cam)

For external sensors:

1. Turn on the display.
2. Install the security nuts (optional to prevent theft) and sensors on the tyres - replacing the original valve cap.

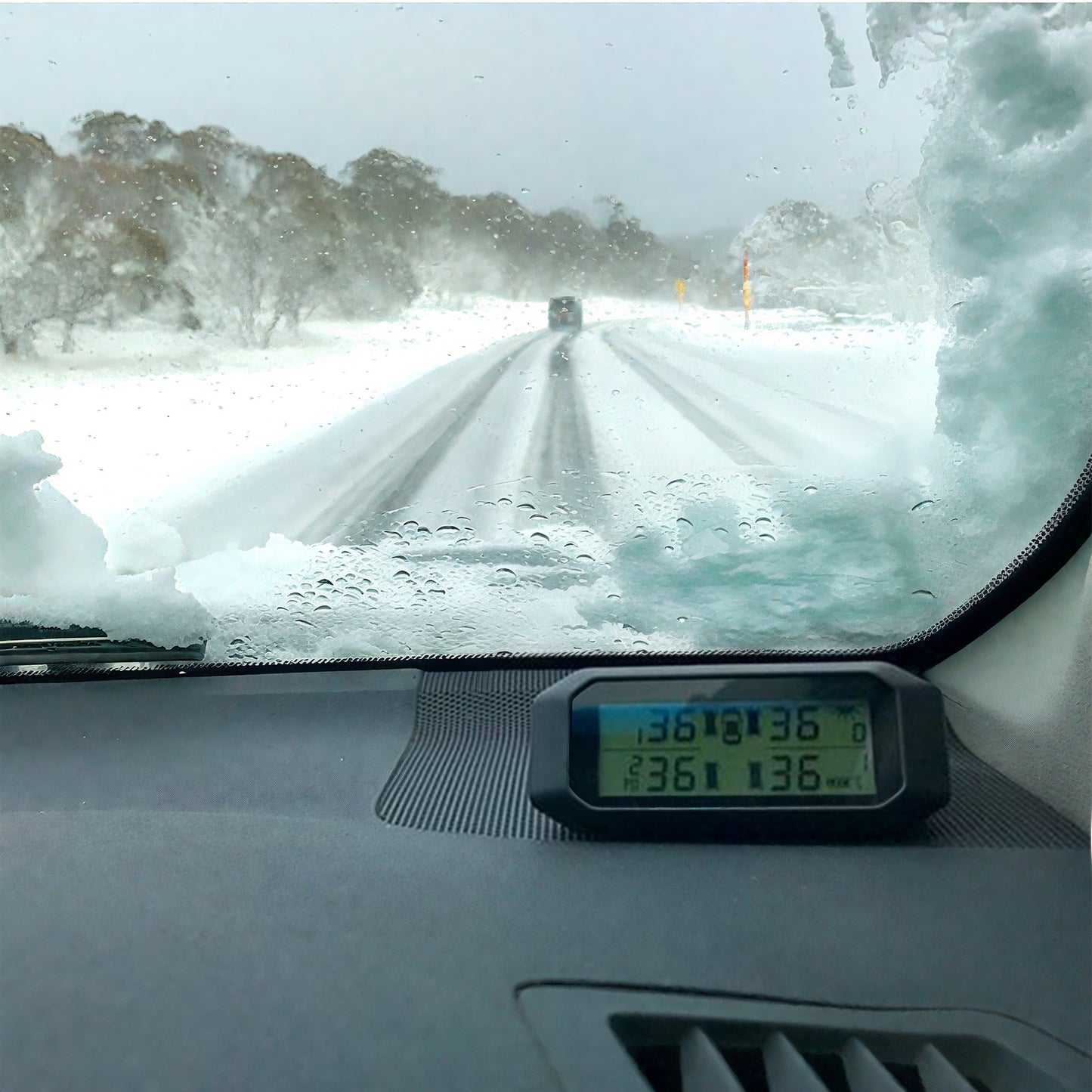

3. Mount the display on the dashboard - and you're ready to roll!

For internal sensors:

We recommend getting this installed at a tyre shop or by a professional tyre fitter.

LCD displays are susceptible to damage from extreme heat and sunlight. While our displays are tried and tested, please minimize exposure to prolong the life of your unit.

We suggest:

1. Mounting the display unit close to an air-vent, and/or partially shaded by the vehicle A-pillar
2. Using the provided Velcro stickers and moving the display unit into the glove-box when not needed for an extended period (and in Australia's hot climate!)

Ensure the cover for the external sensor is tightly screwed on if the vehicle especially if driving in muddy conditions.

Please clean the external sensors after driving through muddy conditions.

Charge the unit using a 5V, Micro-USB connection.
