Mata 7S-R3232 | TPMS for Multi-Trailer Trucks | Telematics Integration

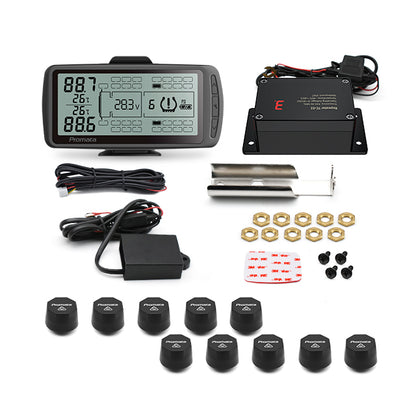

10 Sensors Prime Mover Kit:

• Display monitor
• Display cable wiring with R3232 output
• KC-01 booster
• 10 sensors (external/internal)
• Strap with clamp (internal truck sensor only)
• Matching number of lock nuts (external only)
• Patented wrench (external only)
• 3M sticker
• Display stand
• 4 installation screws
• Instruction manual

Trailer Kits - 12 Sensors Per Kit

• All the items in 10 Sensor Prime Mover Kit
• Additional TC-02 trailer kit with 12 sensors

• Pressure monitoring range: 7-203 PSI (0.5-14 BAR)
• Monitoring distance with included booster: 25 meters
• Accuracy: ± 3 PSI (± 0.2 BAR)
• Maximum number of tyres monitored: Up to 110 with additional sensors
• Battery life: External sensor - 2+ years (replaceable), internal sensor - 5 years

• R3232 enables tyre data output for integrating into your telematics systems.
• Get insights on your dashboard so you can sit in-office and watch while sipping coffee.
• Sensors is easily paired using the monitor
• Can check the pressure for 2 tyres in one click
• Option to view all tyres in one screen
• Hook and drop features allow you to pick up multiple trailers with TC-02 installed
• Real time tyre pressure and tyre temperature monitoring
• Visual and audible alerts for low pressure, high pressure, fast air leakage and high tyre temperature
• Adjustable pressure alarm for drive tyres and other tyres
• Monitors up to 6 trailers and 110 tyres
• Display scrolls automatically to show all truck tyre data
• IP67 rated sensors are both waterproof and dustproof
• Replaceable CR2050B button cell battery for the external sensors
• Vibration sensitive auto-wake display
• Backlight for night driving
• Included booster to strengthen sensor signal distance
• Large, heat-resistant LCD display that is clear and readable under the harsh Australian sun, showing all tyre pressure and temperature info

1. Connect cable to the truck’s power and R3232 wires.
2. Mount the display stand onto the dashboard using either screws or double-sided sticker.
3. Plug cable into the charging port, then mount the display onto the stand.
4. Connect KC-01 booster to power in the truck.
5. Install truck sensors in their correct position.
6. (Optional Trailer monitoring kit install) Install TC-02 repeater, connect to power in the same circuit as the display.
7. (Optional) Install truck sensors for TC-02 repeater in their correct position on the trailer.

LCD displays are susceptible to damage from extreme heat and sunlight. While our displays are tried and tested, please minimize exposure to prolong the life of your unit.

Ensure the cover for the external sensor is tightly screwed on if the vehicle especially if driving in muddy conditions.

Please clean the external sensors after driving through muddy conditions.
