Mata 7 | TPMS for Trucks With Semi-Trailers

$999.00 AUD

~~$999.00 AUD~~ $999.00 AUD

-0% OFF Sold out

Monitors up to 34 tyres for trucks and trucks with semi-trailers. The Mata 7 supports cable charging and is certified according to full Australian standards.

Prevent Costly Breakdowns - See your tyre pressure and temperature in real time so you can spot issues before they escalate.
On-Time, Every Time - Keep your deliveries running smoothly with fewer roadside breakdowns.
Eliminate Manual Checks - Real-time pressure alerts mean no more guesswork or time wasted on manual checks.

This is the Truck Kit only - the trailer kit is separate. If you're towing a trailer with your truck, please get our TC01 Trailer Kit Here

Fleet Solutions & Support

We offer bulk order discounts, solutions tailored to your vehicles and unlimited support. If you’re looking to get TPMS kits for your fleet, please reach out to us at fleet@promata.com.au

Sensor Type External - 10 Sensors Internal - 10 Sensors

Quantity

Orders Over $149 Ship Free
Afterpay Accepted
12 Month Warranty

⚙️ Specifications

Pressure Monitoring Range: 7-203 PSI (0.5-14 BAR)
Monitoring Distance With Included Booster: 25 meters
Tolerance: ± 3 PSI (± 0.2 BAR)
Number of Tyres Monitored: Up to 34
Battery Life: 2+ years for external sensor (replaceable) | 5+ years for internal sensor

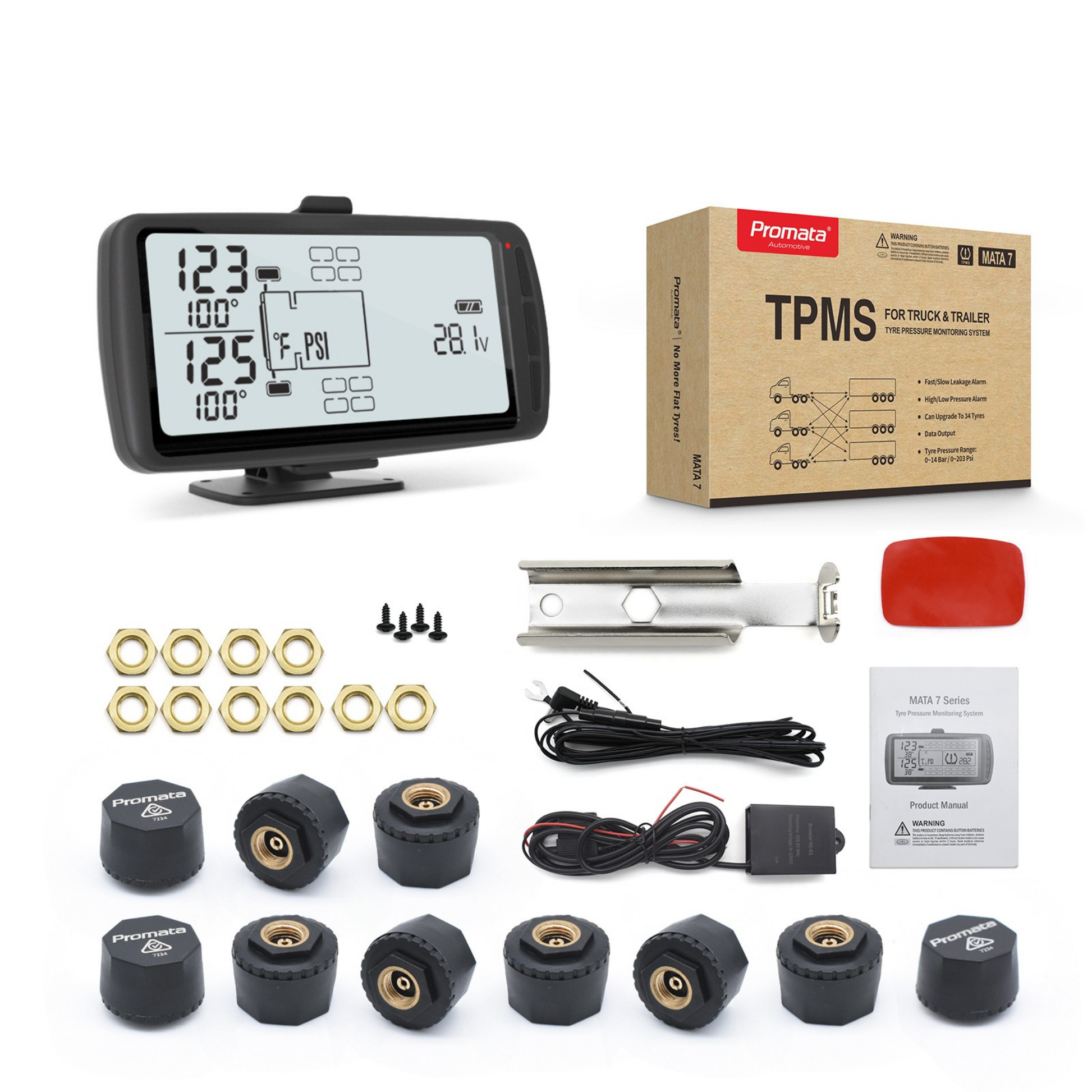

In the Box

10 Sensors Prime Mover Kit:

Display monitor
KC-01 booster
10 sensors (external/internal)
Strap with clamp (internal truck sensor only)
Matching number of lock nuts (external only)
Patented wrench (external only)
3M sticker
Display stand
Display cable wiring
4 installation screws
Instruction manual

Features

Hook and drop features allows you to pick up any trailer with a TC-01 installed.
Wireless sensor pairing.
IP67 rated waterproof and dustproof sensors - suitable for river-crossings, sand, mud and everything in-between.
Adjustable tyre pressure alarm thresholds for both steer wheels and drive wheels.
Real time tyre pressure and tyre temperature monitoring.
Alerts for low pressure, high pressure, fast air leakage and high tyre temperature.

Installation & Care

Connect cable to the truck’s power.

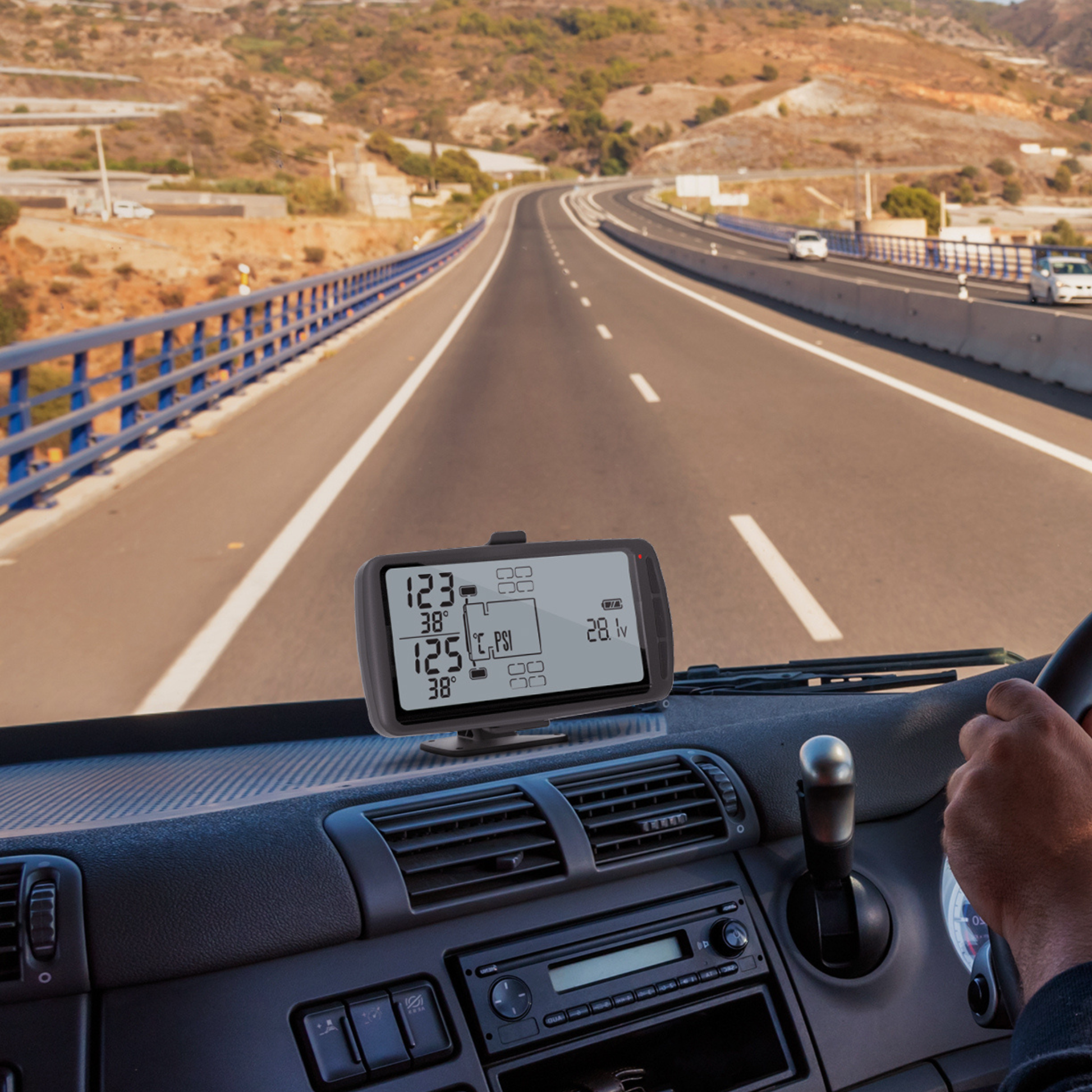

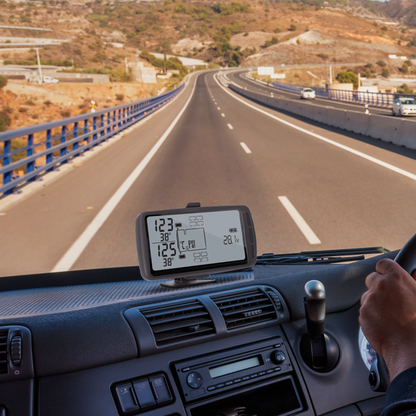

Mount the display stand onto the dashboard using either screws or double-sided sticker.
Plug cable into the charging port, then mount the display onto the stand.
Connect KC-01 booster to power in the truck.
Install truck sensors in their correct position.
(Optional Trailer monitoring kit install) Install TC-01 repeater, connect to power in the same circuit as the display.
(Optional) Install truck sensors for TC-01 repeater in their correct position on the trailer.

Please avoid direct exposure to strong sunlight. While we use top notch screens, no LCD currently on the market can withstand strong sunlight for extended periods of time.
