Where to Mount Your TPMS Signal Booster - Installation Guide
For most cars and 4WDs, a signal booster isn’t required. So long as the distance between the display monitor and furthest sensor is under 10 meters, Promata TPMS systems offer a reliable signal.
However, when towing a trailer, caravan or camper, the distance between the display and sensors mounted on the trailer wheels can exceed 10 meters. In these situations, a signal booster plays an important role - bridging the gap to ensure accurate tyre pressure and temperature readings.
Where to Mount the Signal Booster
To keep your TPMS running flawlessly, placement of the KC-01 Signal Booster is crucial. For optimal performance, place the booster roughly midway between your display monitor and the furthest sensor. Placing it centrally, rather than to the sides helps maintain a consistent signal.

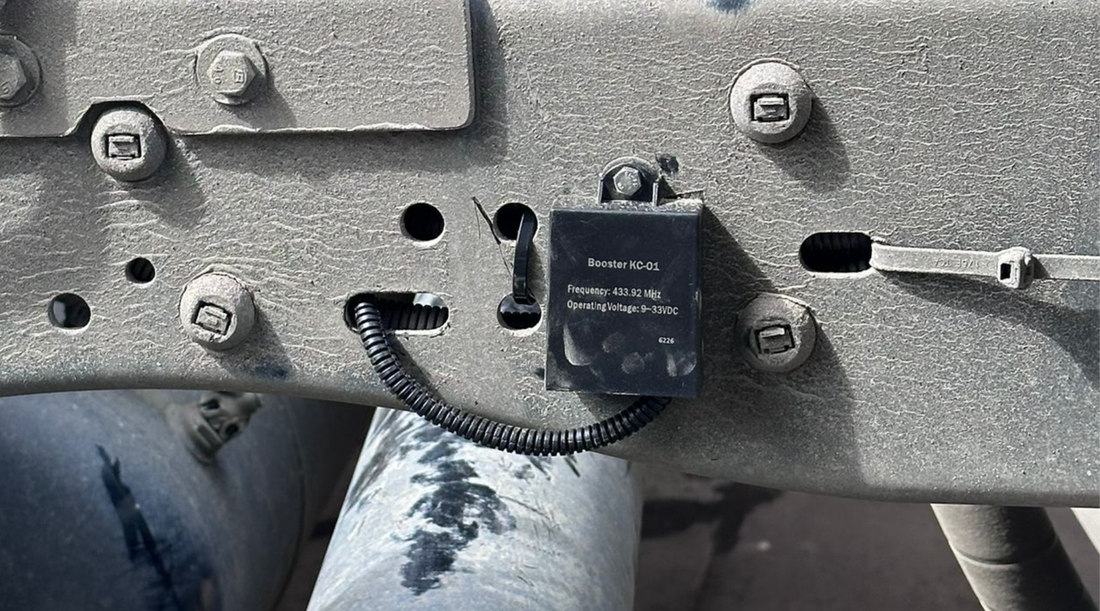

In practice, the ideal mounting spots are either at the rear of your towing vehicle or at the front of the trailer. Image below shows the best position:
How to Mount the Signal Booster
To get your KC-01 Signal Booster up and running, it needs to be connected to a power source - either your towing vehicle or the trailer’s battery. Don’t worry - the booster draws very little power, so there’s virtually no risk of draining your vehicle’s battery. The booster comes with two wires:
- The red wire can be connected to any 12V or 24V power source.
- The black wire is the ground wire and should be connected to a ground source.
For the best performance, please follow these two simple mounting tips:
- Position the booster so the front side (side with the text on it) faces away from metal surfaces. Large metal parts can interfere with signals so it’s best to keep it clear for maximum coverage.
- Use screws or zip ties to keep the booster firmly in place and avoid it falling off mid drive.
By wiring and mounting it properly, your TPMS will deliver strong, reliable signals for every tyre.
Conclusion
Reliable TPMS performance depends on consistent communication between your sensors and your display monitor. By mounting the booster in the correct location, keeping it clear of metal interference and securing it firmly, you’ll maximise signal strength and keep your TPMS operating optimally. This in turn will give you timely and accurate tyre pressure and temperature data.
